SSK Aluminum M.2 to USB NVMe SATA SSD Enclosure Reader, Tool-Free USB 3.2 Gen 2 10Gbps NVMe PCI-E 6Gbps SATA M-Key / B+M Key Solid State Drive External Adapter With UASP Trim, for SSDs 2242 2260 2280

Click to enlarge

SSK Aluminum M.2 to USB NVMe SATA SSD Enclosure Reader, Tool-Free USB 3.2 Gen 2 10Gbps NVMe PCI-E 6Gbps SATA M-Key / B+M Key Solid State Drive External Adapter With UASP Trim, for SSDs 2242 2260 2280

Original price was: 999,00 L.E.Current price is: 850,00 L.E.

بضمان شهر من هاردوير ماركت
Compatible SSD: This M.2 SSD Enclosure supports both NVMe PCIe and SATA protocol SSDs with M-Key or B+M Key connectors. It is compatible with SSD length 2280, 2260, 2242, 2230 enclosure
10Gbps Blazing-fast: SSK M.2 NVMe Enclosure top speed 10Gbps, data transfer and backup up to 1000MB/s. Unlock the potential of your M.2 SSD with USB3.2 SSD Enclosure (6Gbps for SATA SSDs)
Tool-Free Installaion: Easily install or replace your SSD in just two steps, saving the trouble of screwing. Plug-and-play SSD enclosure adapter with Multi OS compatibility for on the go use
Heat Dissipation: M.2 SSD Enclosure features aluminum alloy shell with slim design that efficiently conducts heat from the SSD to the outer case. Includes 2 thermal pads, USB-C cable and USB-A cable
Blue Indicator: Blue Indicator on the SSD enclosure shows the data transfer status, easy and clear. Bus powered, does not need an external power supply
Data Security: SSK M.2 Enclosure supports S.M.A.R.T and TRIM. S.M.A.R.T, monitor drive health proactively. TRIM maintains consistent performance, prolonging SSD’s longevity

In stock

SKU: SSK | HE-C327 Categories: Hardware, STORAGE

Description

According to the New USB-IF standard, the USB 3.2 specification replaces the USB3.0 USB3.1 specification and it introduced a new nomenclature, the USB 3.2 specification absorbed all prior USB 3.0/3.1 specifications, So, our 10Gbps USB C NVME SSD Enclosure, we can say USB 3.1 Gen 2 or USB3.2 Gen 2(Old Nomenclature /New Nomenclature)

USB 3.2 New Nomenclature:

1. USB3.2 Gen 1 = USB3.1 Gen 1 , Product transfer rate is up to 5Gbps, Marketing name: SuperSpeed USB

2. USB3.2 Gen 2 = USB3.1 Gen 2 , Product transfer rate is up to 10Gbps, Marketing name: SuperSpeed USB 10Gbps

3. USB3.2 Gen 2X2, Product transfer rate is up to 20Gbps, Marketing name: SuperSpeed USB 20Gbps

Aluminum alloy shell/Fashion and portable

SSK NVMe SSD enclosure adapter

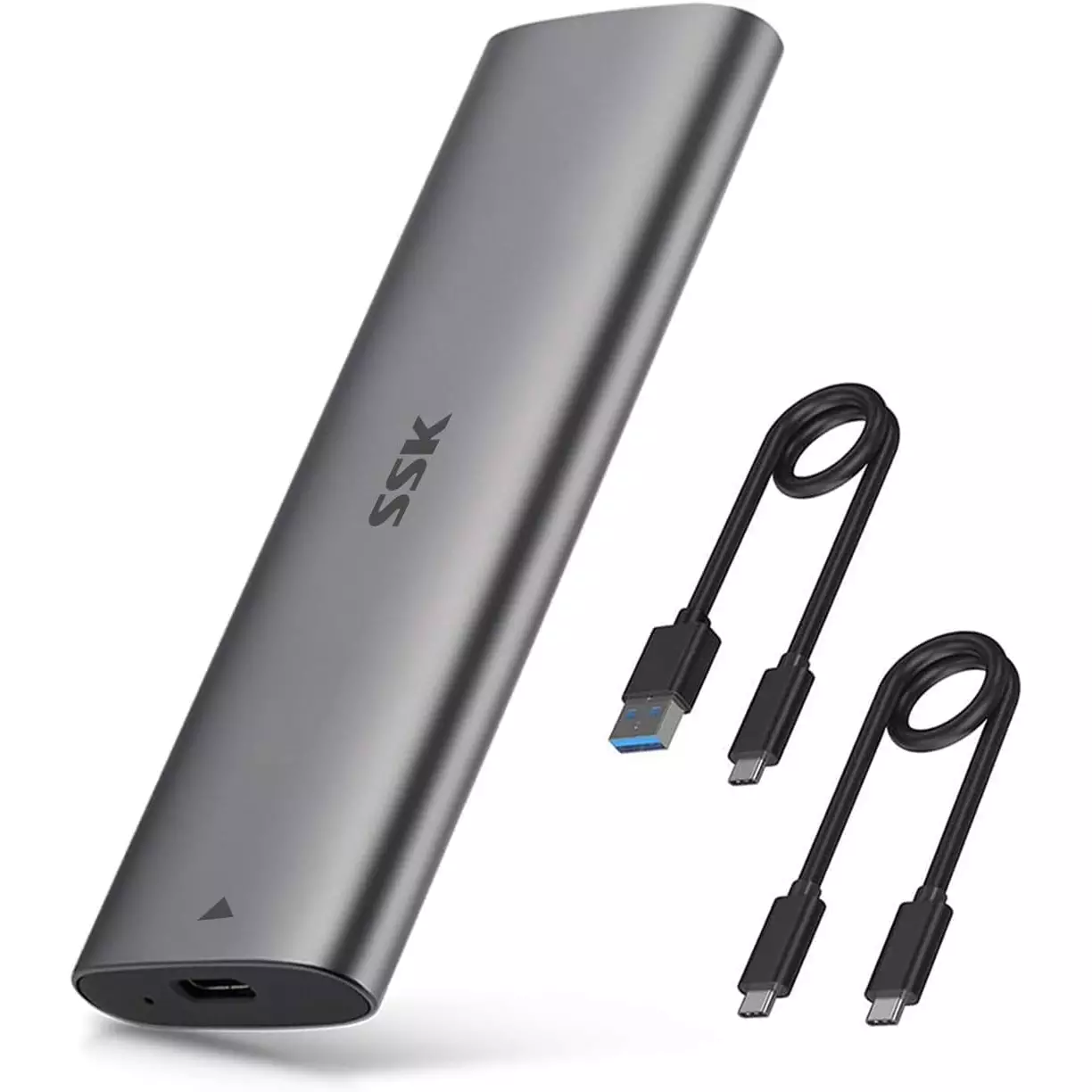

Package Included

1 x M.2 NVME/SATA to USB 3.1/3.2 Type-C SSD Enclosure

1 x USB C to USB C Gen2 Cable (10Gbps)

1 x USB A to USB C Cable (10Gbps)

2 x Thermal Pad

1 x Screw Set : 2 screws (1*Scew A and 1*Screw B)

Notice：Both cables up to 10Gbps transfer speed

The actual speed depends on the speed of your SSD, USB Port type, your computer performance etc, nvme ssd is not included.

SSK Type C M.2 NVMe/SATA PCIE Tool-Free SSD Enclosure

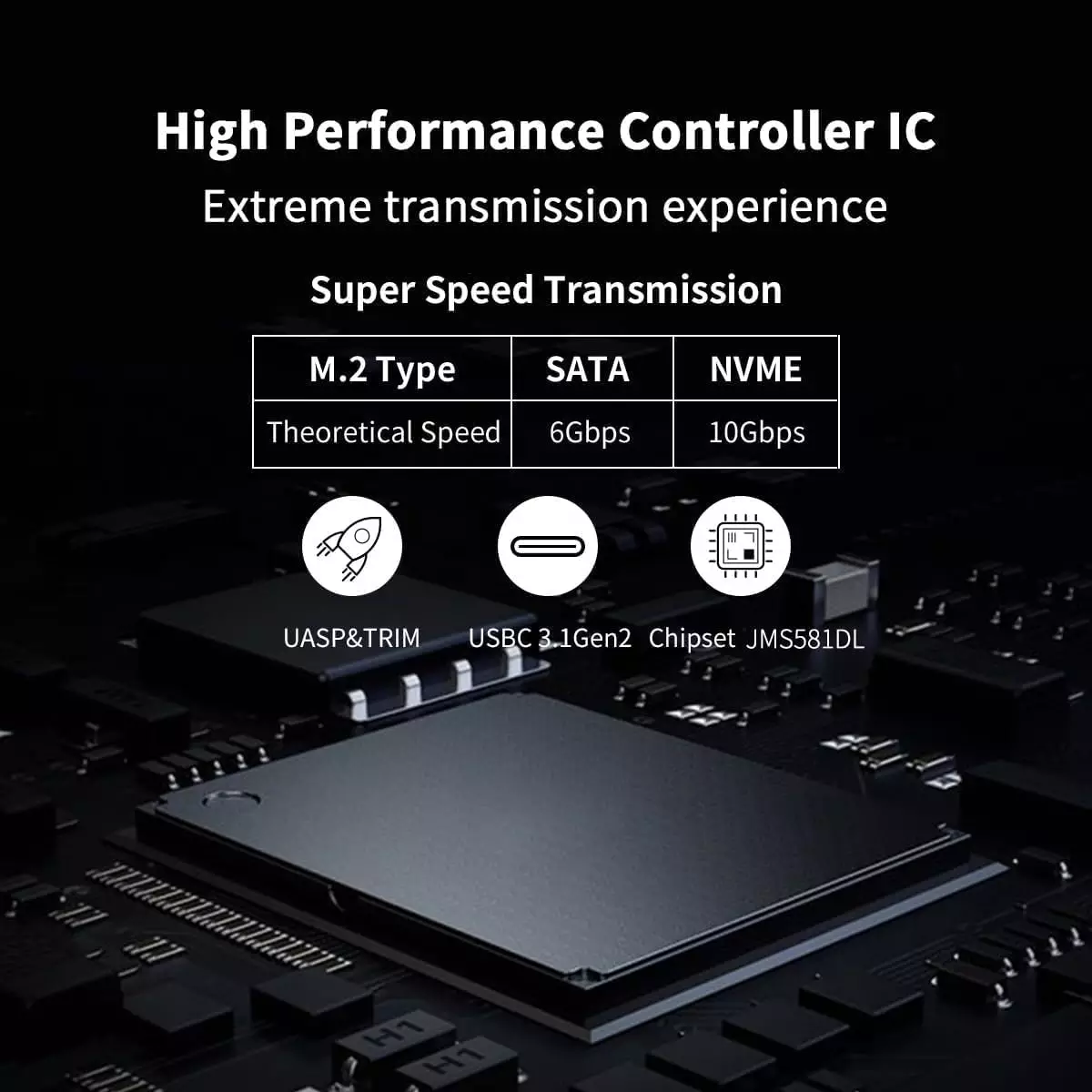

SSK M.2 NVME SSD Enclosure adopts high performance controller chip(JMS581DL), up to 10Gbps high-speed data transmission. 1GB file only takes1 second. SATA-based B&M Key M.2 SSD read/write speed up to 6bps. Complies with UASP, Trim which can effectively improve the speed and extend the longevity of SSD.

Attention: It supports PCI-E based M key & (M+B) key M.2 NVME and SATA SSD up to 4TB; M.2 PCIe AHCI SSD or MacBook original SSD are not supported!

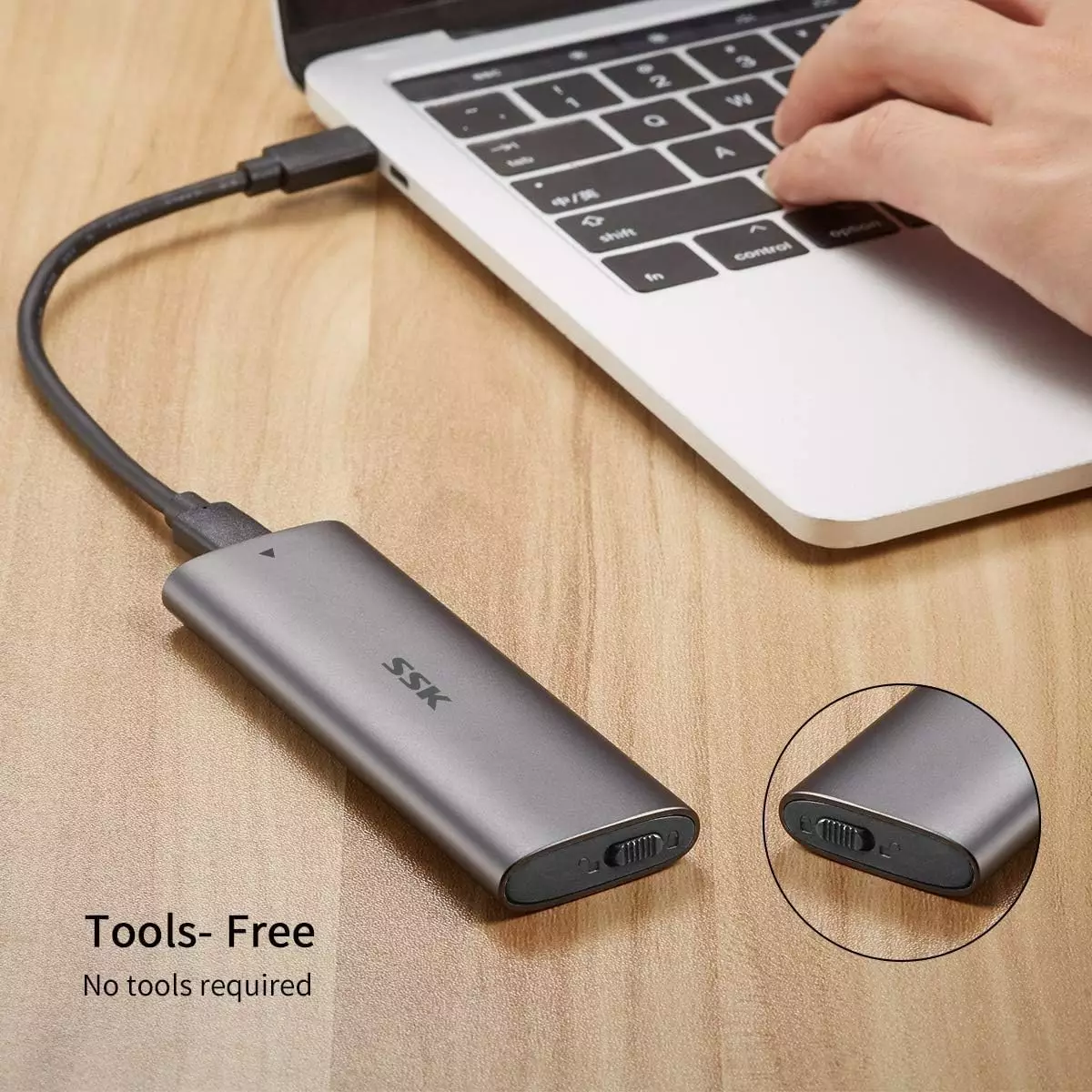

Tool-Free,No tool required

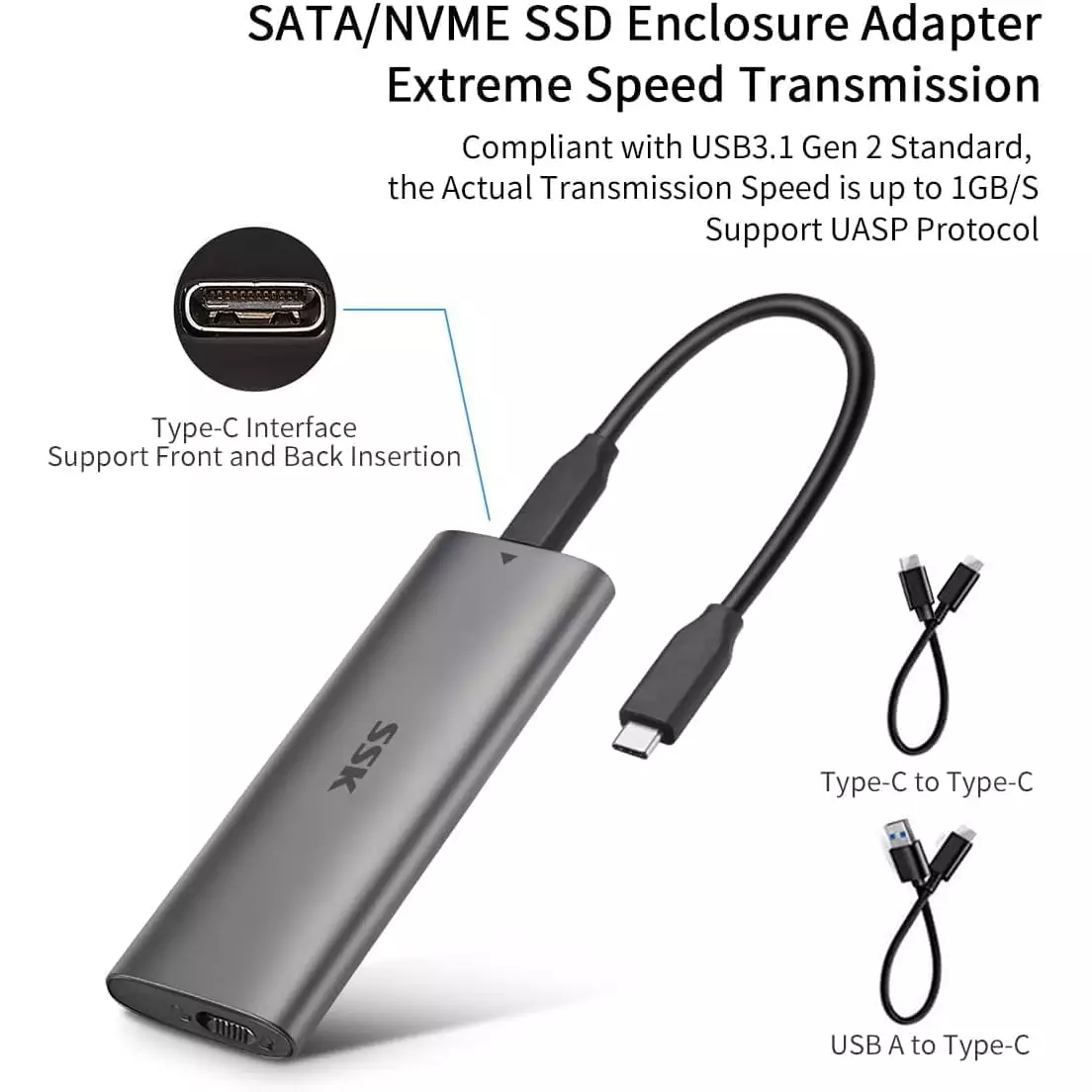

Interface type: M.2 NVME PCIe to USB 3.1/3.2 Gen 2
Support SSD Drivers Size: 2230, 2242, 2260, 2280mm
Case Size: 115*39*11mm
Cable 1 : USB C to USB C(150MM)
Cable 2 : USB3.0 AM to USB C(150MM)
Color: Grey+Black

Main Features

Tool free

Easy Installation & Extreme Data Transfer

Plug and play, no driver required. With USB 3.1/3.2 Gen2 interface,provides transfer speeds of up to 1000MB/s,1GB file1 second. Backward compatible with USB 3.1 Gen2 and USB 3.1 up to 10Gbps.

Portable SSD enclosure adapter

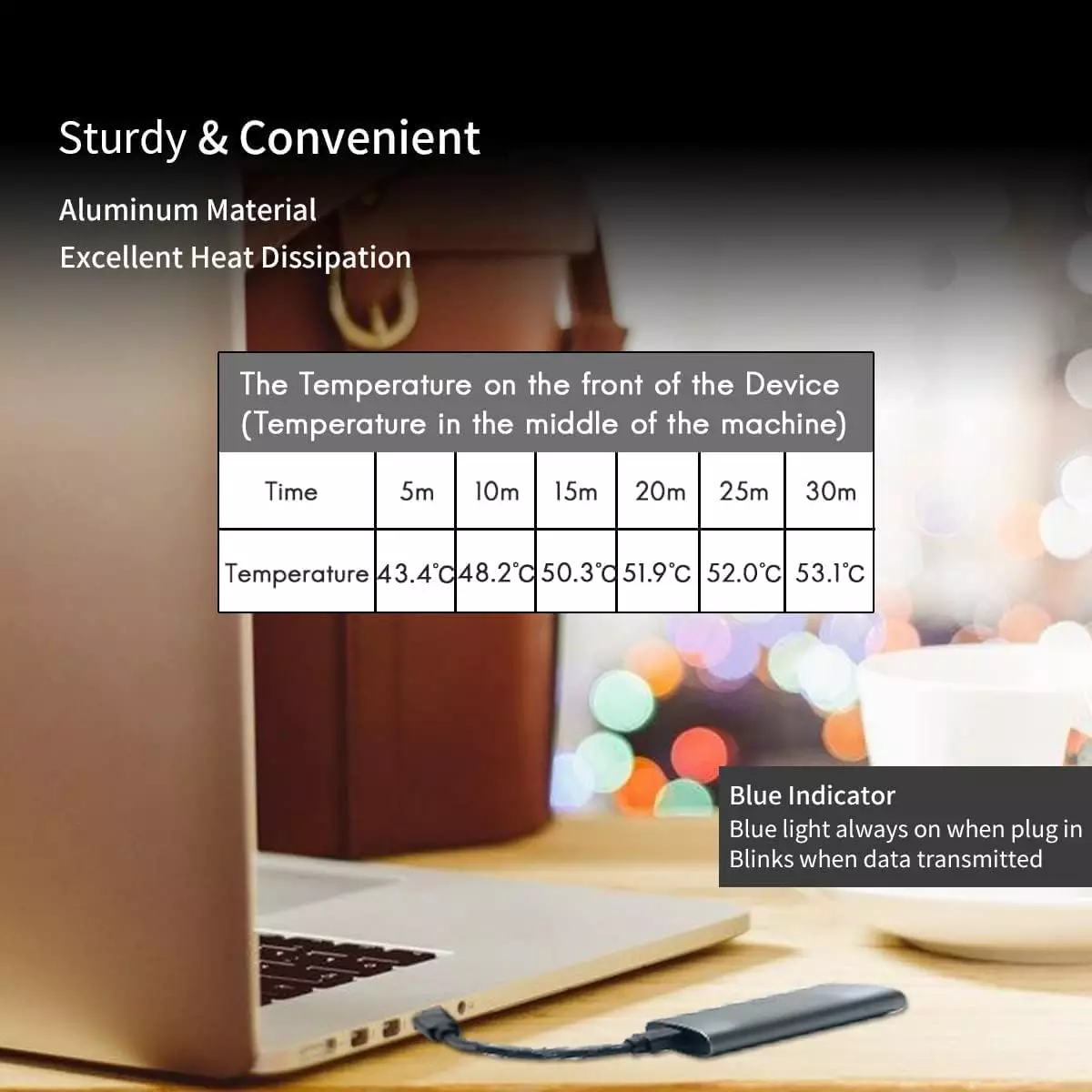

2* Thermal Pads included for Excellent Heat Dissipation

Everything you need in one package, included 2* thermal pads, you can paste one thermal pad or two side by side to achieve rapid heat dissipation.

Thermal pad

Fashion Design

Adopts aluminum alloy shell, Slim design, and excellent heat dissipation, be portable and easy to carry.It will be the best choice for trip and business travel.

Main Features

Tool-Free NVMe SSD enclosure adapter

Tool-free design and fastest USB storage speeds!

Tool-free design and no additional tools required. With two cables, USB A to C and USB C to C which suitable for all Host PC ports.

Supports Plug & Play and Hot-Swapping.

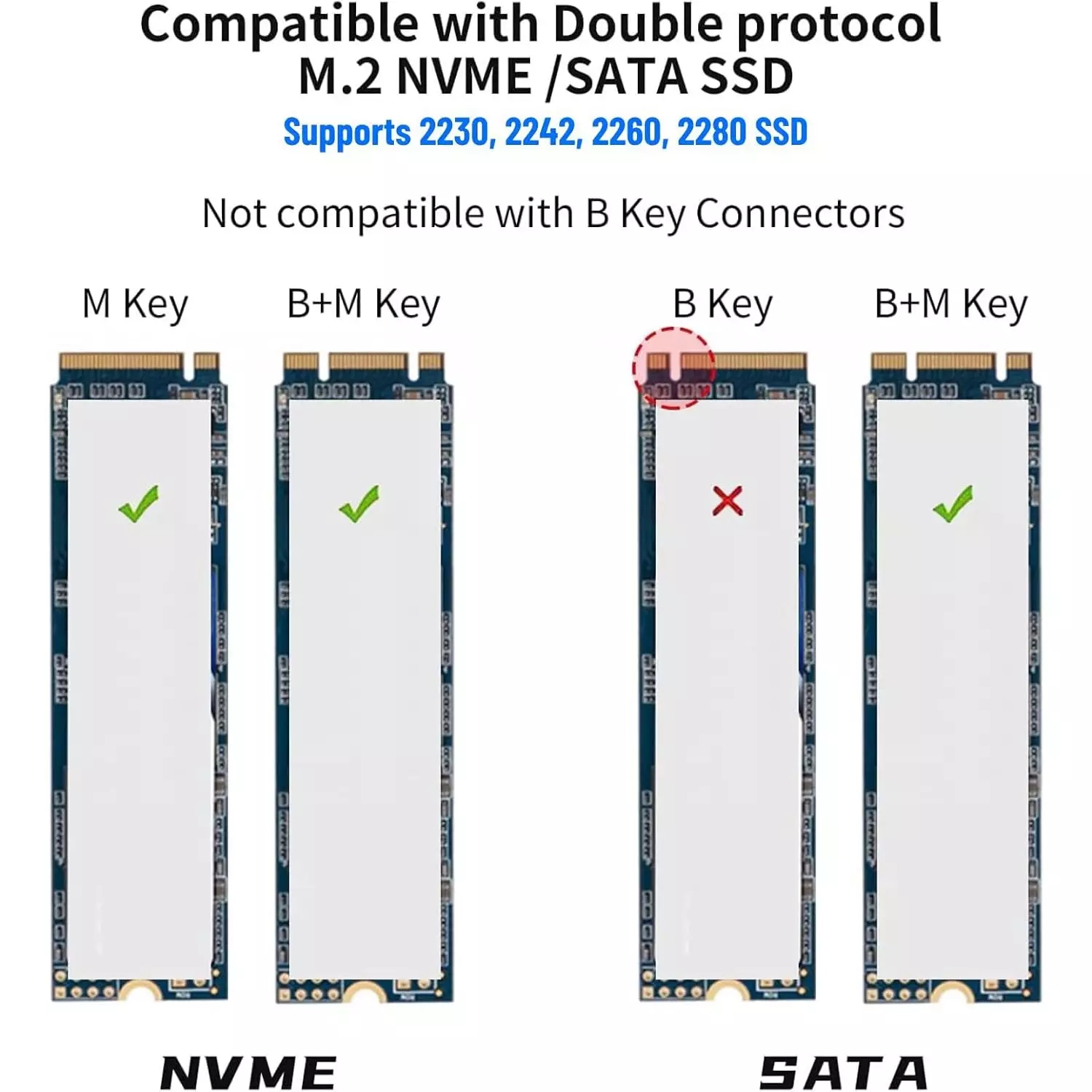

NVMe and SATA SSD Compatibility

Compatible with M.2 NVMe and SATA NGFF SSDs
Not compatible with B Key Connectors. M.2 PCIe AHCI SSDs, M.2 PCIe devices such as WiFi and capture cards, mSATA SSDs, and non-M.2 form factor SSDs
NVMe SSDs use exceptionally high performance storage media that will run hot when under load.
The rubber SSD retention peg can be moved to support multiple M.2 NVMe SATA NGFF SSD lengths including: 2280, 2260, 2242,2230.

Different situation for the SSk M/2 NVMe SSD enclosureuse

Multi OS Compatible

Windows 7 or above, Mac OS 10.10.5 or above, Linux, and Type C Android Phones.Blue Indicator is always on when plug in, and flash when read or write data.

Installation Instructions

C326 A+ 步骤更新

1. Please slid to open and take the middel frame out of the enclosure.

2. Place the SSD at and angle of 45 degress into the PCB.

3. Insert the fixing hole at the end of the M.2 SSD into the slot in the middle of screw B, insert screw A and tighten it. Otherwise, there will be large screws preventing the installation of the enclosure.

4. Put the thermal pad on the SSD,leave the sheet on the thermal pad.

5. Inserting in the direction of the arrow,the end with the hook goes slowly slide into the shell first. When you hear a bang, it means that it is locked

Note:

１.After installed, when the first time to use the new SSD, it may not be found, please partition and format it first under disk management, then it can be used normally. If want to work on both Mac and Windows OS, please format it to EXFAT.

２. Pless kindly noted our item work well on all brands NVME M.2 2230, 2242, 2260, 2280mm SSD up to 4TB including Intel 600p, 660p, Sumsung, WD, Crucial etc. If any question you have, please mail us, we will help you well.

３.Not compatible with MacBook original SSD．

Thank you for your notice!
